Check GRID Infrastructure software version and Clusterware status:
cd $CRS_HOME/bin
bash-3.2$ ./crsctl query crs activeversion
Oracle Clusterware active version on the cluster is [12.1.0.2.0]
bash-3.2$ ./crsctl check crs
CRS-4638: Oracle High Availability Services is online
CRS-4537: Cluster Ready Services is online
CRS-4529: Cluster Synchronization Services is online
CRS-4533: Event Manager is online

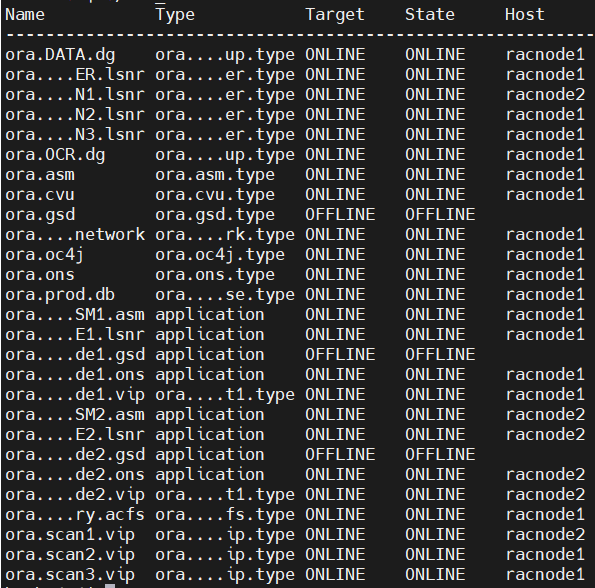

bash-3.2$ ./crs_stat -t
Check Database status and configuration :
bash-3.2$ ./srvctl status database -d PROD
Instance PROD1 is running on node racnode1
Instance PROD2 is running on node racnode2
bash-3.2$ ./srvctl config database -d PROD
Perform local backup of OCR
[root@racpb1 ~]# cd $GRID_HOME/bin/
[root@racpb1 bin]# ./ocrconfig -export /home/oracle/ocrfile_bkp_121
Move the 12cR2 GRID Software to the server and unzip the software :
unzip V840012-01_GRID.zip -d /oracle/grid/12cr2
Run cluvfy utility to pre-check any errors :
cd /oracle/grid/12cr2
./runcluvfy.sh stage -pre crsinst -upgrade -rolling -src_crshome /oracle/grid/12cr1 -dest_crshome /oracle/grid/12cr2 -dest_version 12.2.0.1.0 -verbose
Validate the result and work on missing component
Need to Apply patch 21255373
Download Latest OPatch 6880880
Move OPatch director from GI and Db Home on all rac node
Copy Latest OPatch utility to GI and DB Home on all rac node
First Apply patch on First Node
Run the pre root script as root user in GI Home
<GI_HOME>/crs/install/rootcrs.sh -prepatchApply the GI patch using as GI user
./opatch apply -oh /oracle/grid/12cr1 -local /home/oracle/12c/21255373/21255373
Apply the DB patch using as oracle user
As the database home owner execute:
./opatch apply -oh /oracle/db/12cr1 -local /home/oracle/12c/21255373/21255373Run the post script as root user
# <GI_HOME>/rdbms/install/rootadd_rdbms.sh
# <GI_HOME>/crs/install/rootcrs.sh -postpatch
Now Perform above steps for Second node
Run the datapatch Utility
SQL> Connect / as sysdba
startup
% cd $ORACLE_HOME/OPatch
./datapatch -verbose
Agian Run cluvfy utility to pre-check any errors :
cd /oracle/grid/12cr2
./runcluvfy.sh stage -pre crsinst -upgrade -rolling -src_crshome /oracle/grid/12cr1 -dest_crshome /oracle/grid/12cr2 -dest_version 12.2.0.1.0 -verbose
Review the Result:
Issue:
Verifying Package: cvuqdisk-1.0.10-1 ...FAILED (PRVG-11551)
Solution: Perform on both node
log in as a ROOT user and go to Grid Home
cd /oracle/grid/12cr2/
find ./ -name cvuqdisk*
./cv/rpm/cvuqdisk-1.0.10-1.rpm
./cv/remenv/cvuqdisk-1.0.10-1.rpm
rpm -Uv ./cv/rpm/cvuqdisk-1.0.10-1.rpm
Preparing packages...
cvuqdisk-1.0.10-1.x86_64
cvuqdisk-1.0.9-1.x86_64
rpm -qa | grep cvuqdisk
cvuqdisk-1.0.10-1.x86_64
Issue:
Verifying Disk group ASM compatibility setting ...FAILED
DATA: PRVE-3175 : ASM compatibility for ASM disk group "DATA" is set to
"11.2.0.0.0", which is less than the minimum supported value "11.2.0.2.0".
OCR: PRVE-3175 : ASM compatibility for ASM disk group "OCR" is set to
"11.2.0.0.0", which is less than the minimum supported value "11.2.0.2.0".
Solution:
Check the compatibility of a ASM diskgroup
SELECT name AS diskgroup, substr(compatibility,1,12) AS asm_compat, substr(database_compatibility,1,12) AS db_compat FROM V$ASM_DISKGROUP;
DISKGROUP ASM_COMPAT DB_COMPAT
------------------------------ ------------ ------------
OCR 11.2.0.0.0 10.1.0.0.0
DATA 11.2.0.0.0 10.1.0.0.0
Check the ASM attribute
column value for a20
column name for a20
SELECT group_number, name, value FROM v$asm_attribute ORDER BY group_number, name;
select NAME,VALUE from v$asm_attribute where name like '%com%';
Alter command only used to increased value
ALTER DISKGROUP OCR SET ATTRIBUTE 'compatible.asm' = '11.2.0.2.0';
SQL> alter diskgroup DATA set attribute 'compatible.asm'='11.2.0.2.0';
Diskgroup altered.
SQL> ALTER DISKGROUP DATA SET ATTRIBUTE 'compatible.rdbms' = '11.2.0.2.0';
Diskgroup altered.

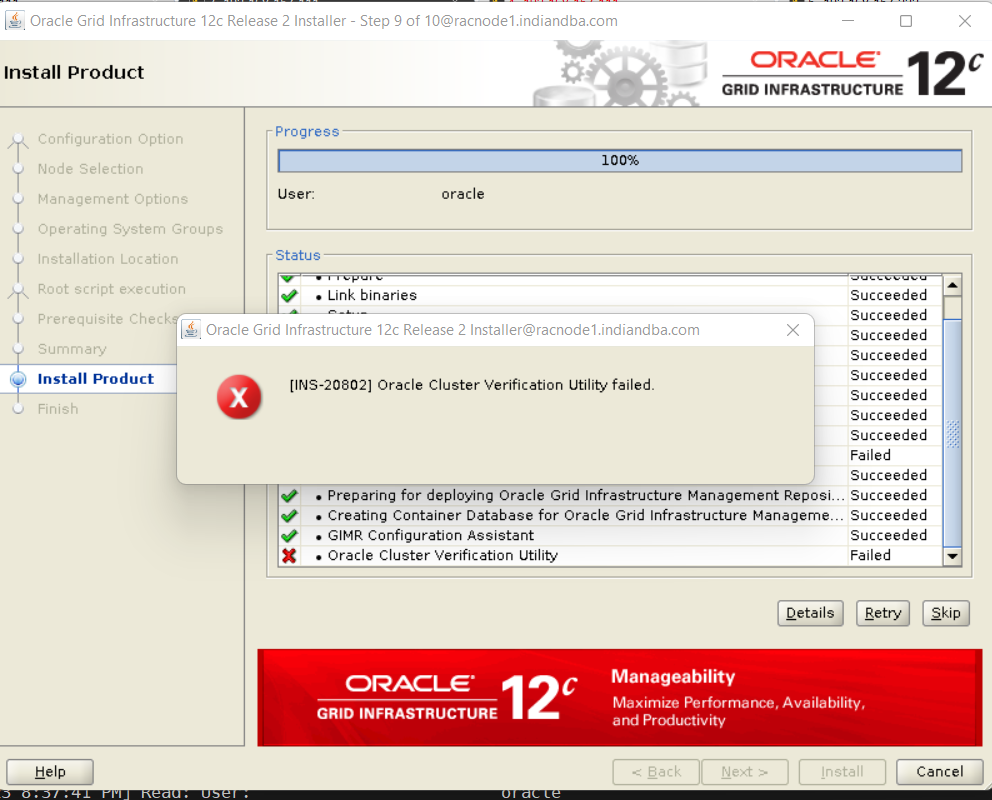

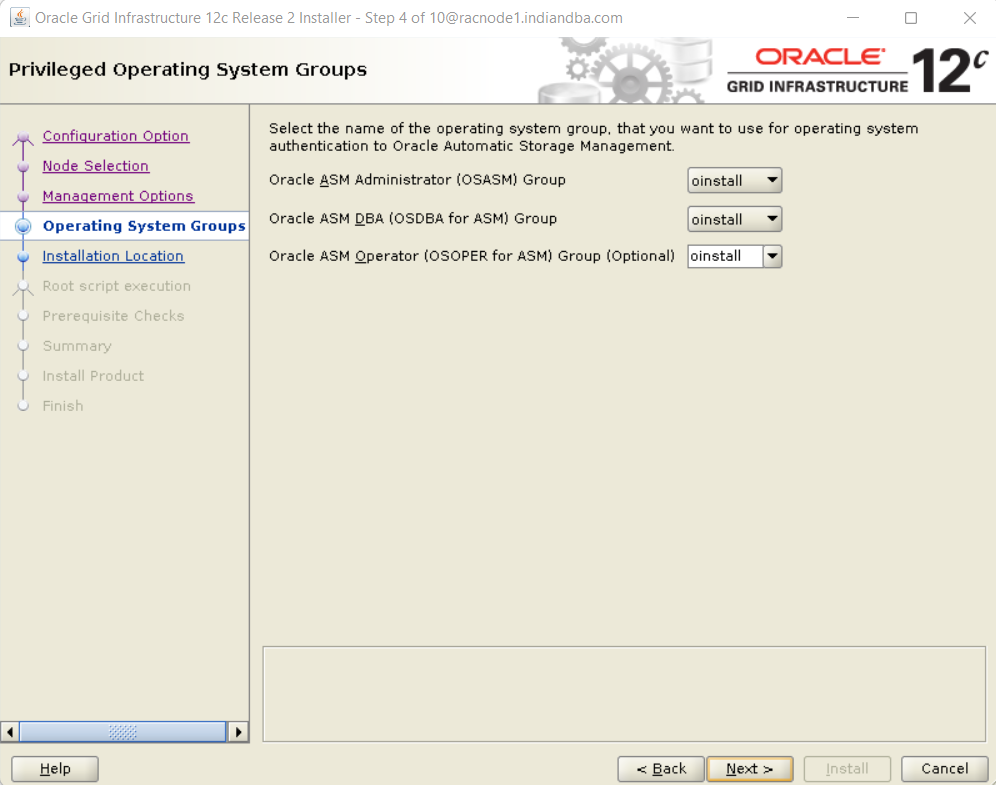

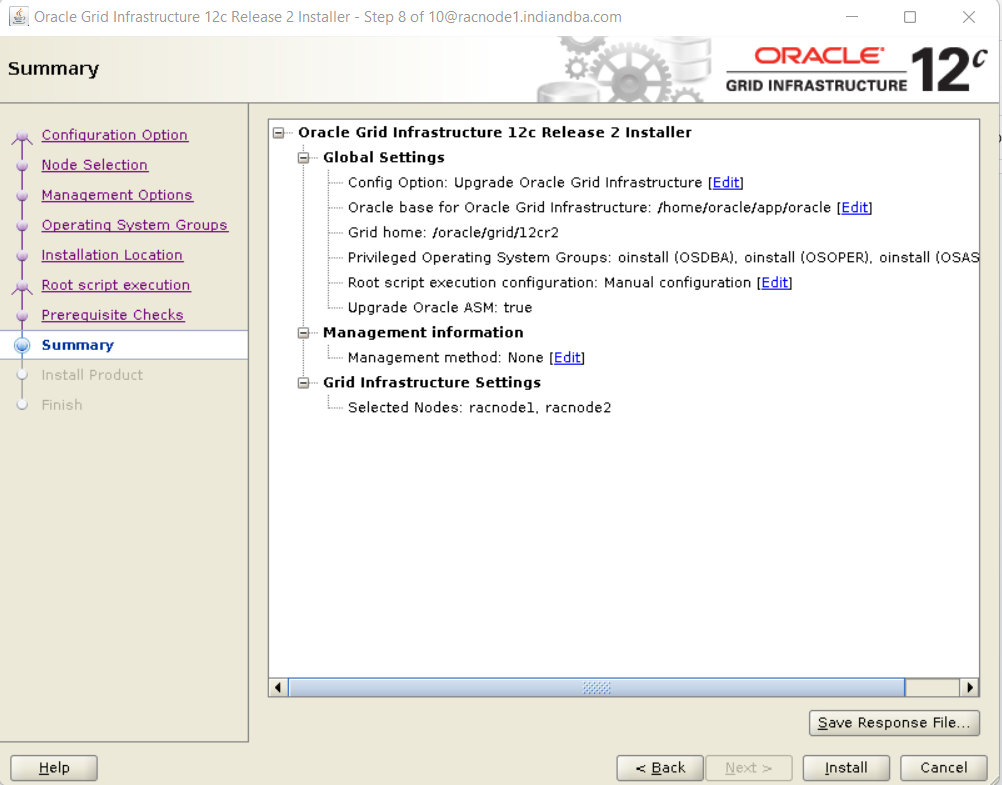

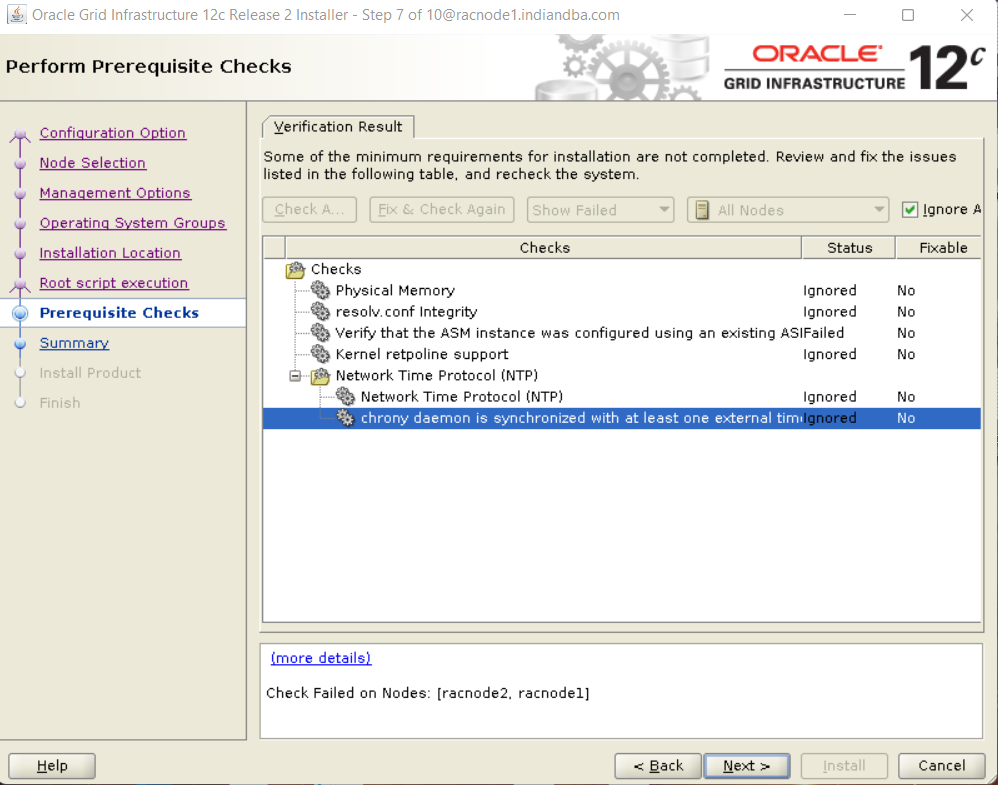

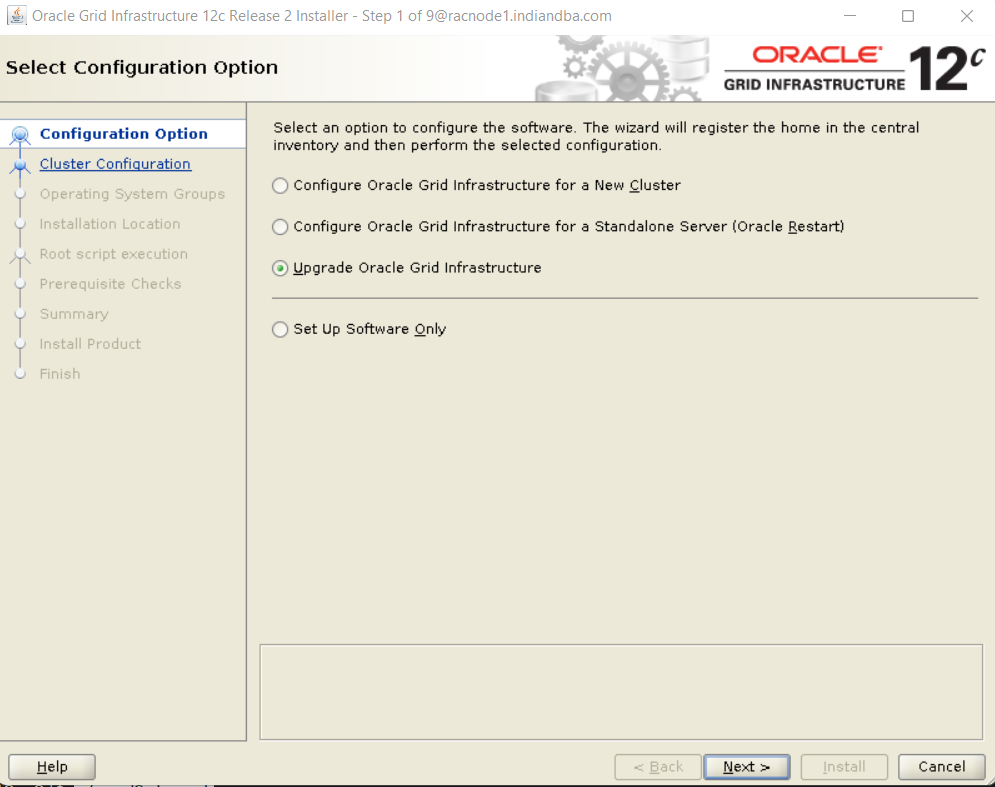

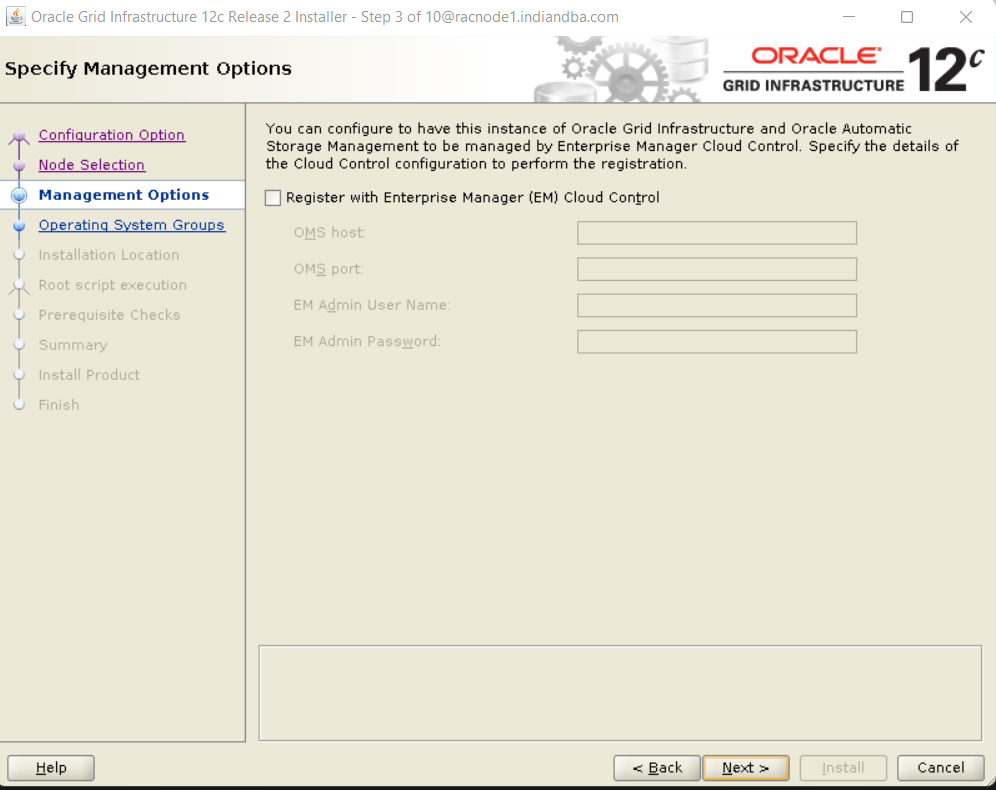

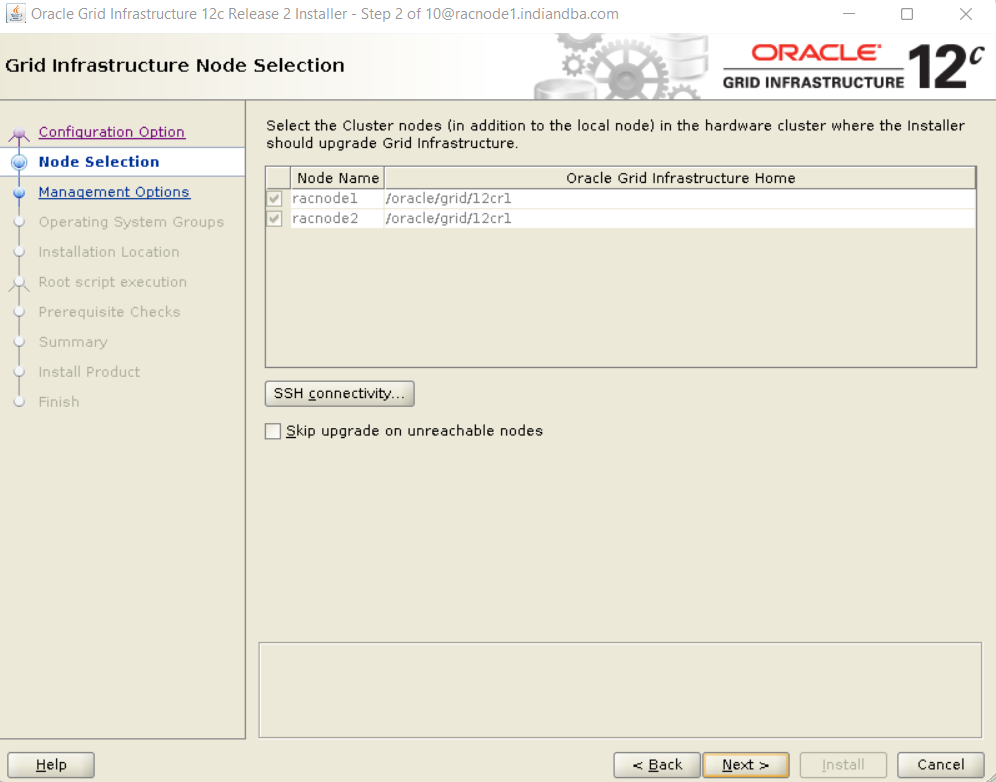

Upgrade 12cR2 by executing runInstaller :
Update OPatch to latest version
Make Sure OCR size not less than 35 GB
Download and unzip latest PSU Patch 33583921
go to /oracle/grid/12cr2
To apply only Release Updates:
./gridSetup.sh -applyPSU <PSU_PATC_LOCATION>
./gridSetup.sh -applyPSU /home/oracle/33583921
Log Location : /oracle/grid/12cr2/cfgtoollogs/opatch

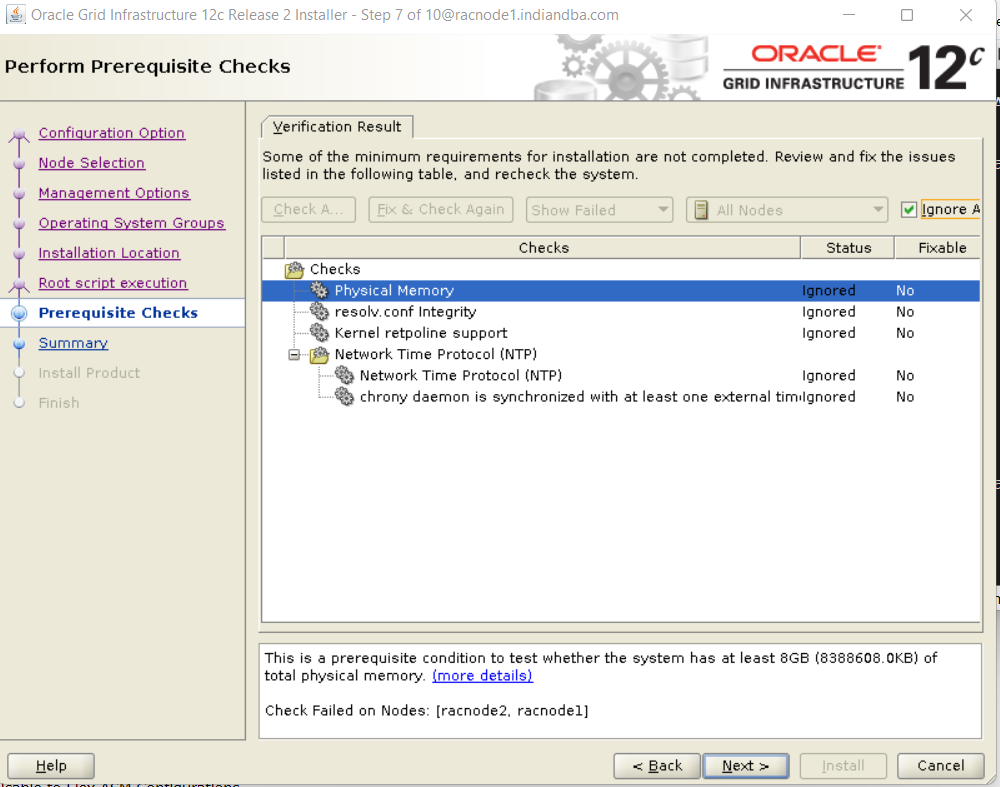

Issue:
PRVG-10091 : failed to retrieve the ASM password file location for an ASM instance
Solution:
When prompted, run the rootupgrade.sh script on each node in the cluster that you want to upgrade.
Run the script on the local node first.
The script shuts down the earlier release installation, replaces it with the new Oracle Clusterware release, and starts the new Oracle Clusterware installation.
After running rootupgrade.sh script,Click the OK button.
Issue:
rootupgrdae.sh failed
validate the Log File: $GRID_HOME/cfgtoollogs/crsconfig/rootcrs_xxxx.log
fix the issue and rerun rootupgrade.sh -force
Ignore
Check the Clusterware upgrade version:
cd /oracle/grid/12cr2/bin/
./crsctl query crs activeversion
Oracle Clusterware active version on the cluster is [12.2.0.1.0]
srvctl status database -d PROD
Instance PROD1 is running on node racnode1
Instance PROD2 is running on node racnode2
Validate the services after CRS upgrade:
./crsctl status resource -t
Then check the status of the clusterware globally as follows:
# crsctl check cluster -all
**************************************************************
racnode1:
CRS-4537: Cluster Ready Services is online
CRS-4529: Cluster Synchronization Services is online
CRS-4533: Event Manager is online
**************************************************************
racnode2:
CRS-4537: Cluster Ready Services is online
CRS-4529: Cluster Synchronization Services is online
CRS-4533: Event Manager is online
**************************************************************

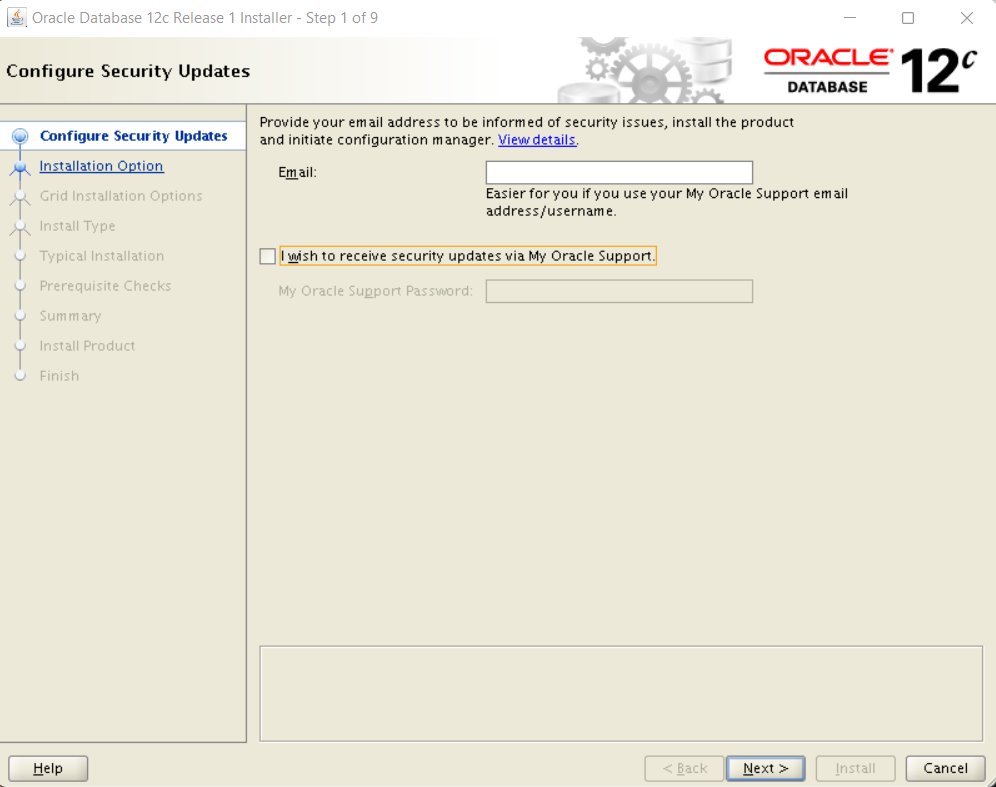

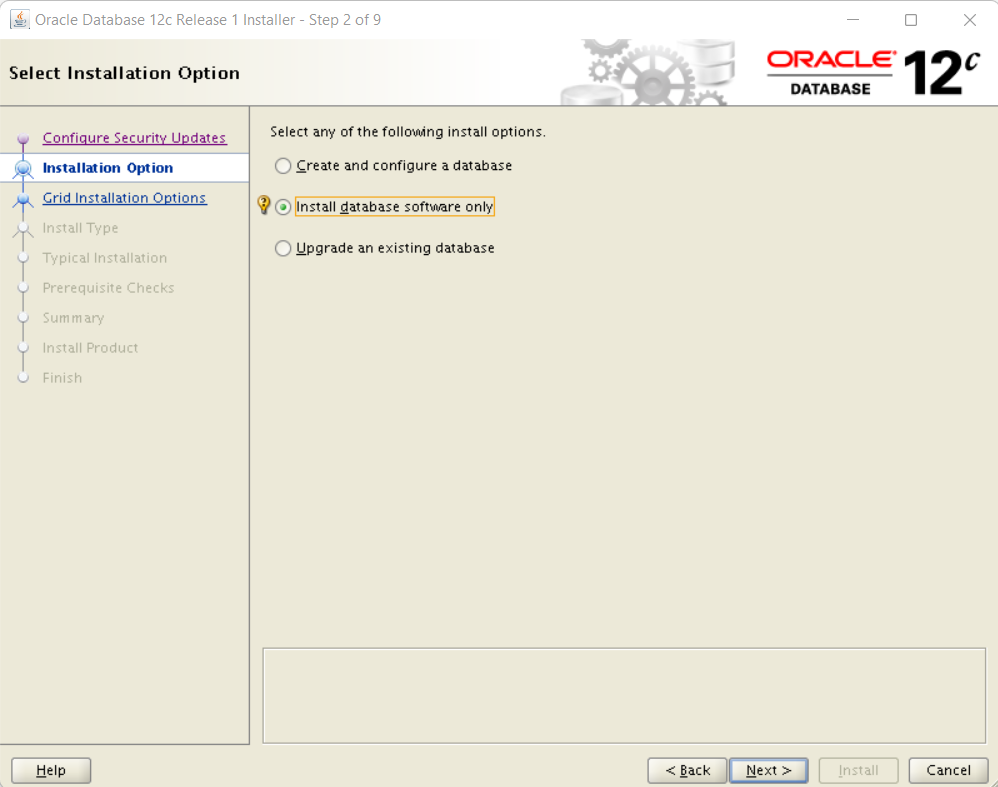

Install RAC database from 12cR1 to 12cR2
Check the preupgrade status
cd /home/oracle/12c
./runcluvfy.sh stage -pre dbinst -upgrade -src_dbhome /oracle/db/11g -dest_dbhome /oracle/db/12cr1 -dest_version 12.1.0.2.0
go to the 12cR2 database dump directory
cd /home/oracle/12c/database

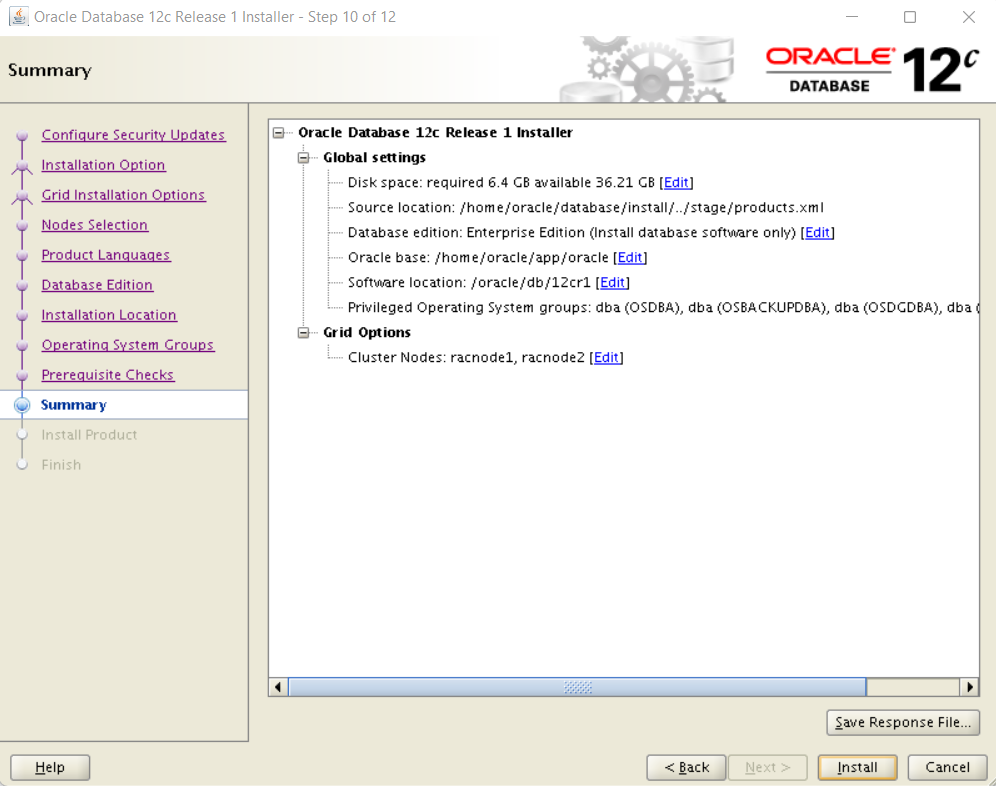

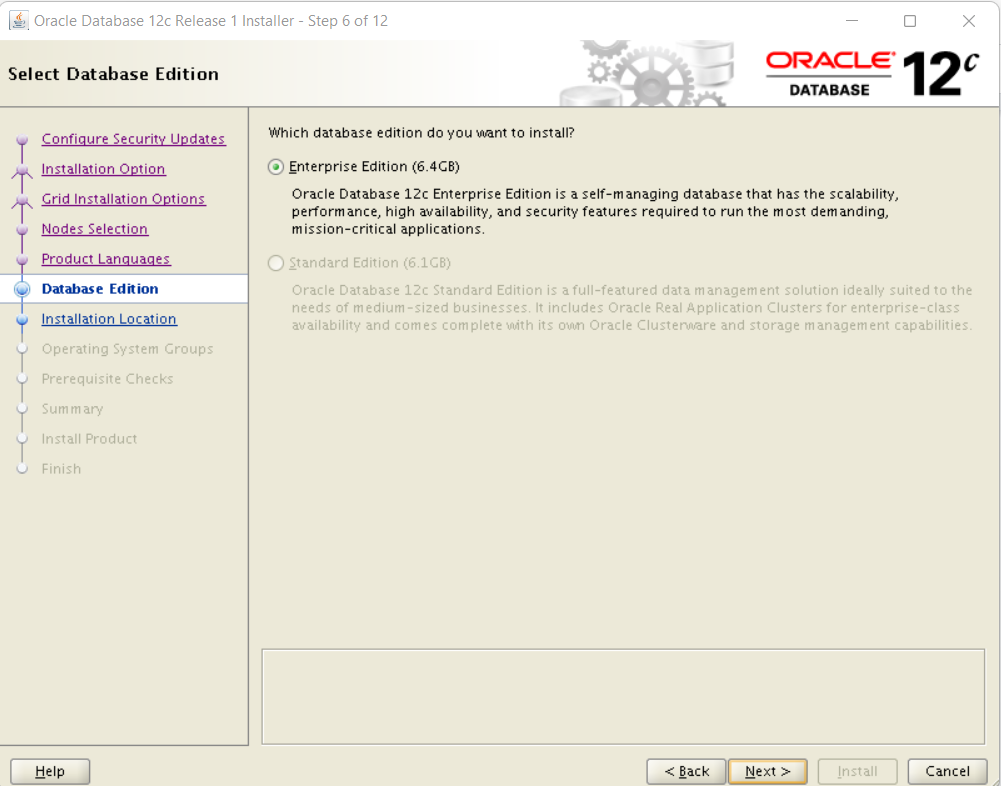

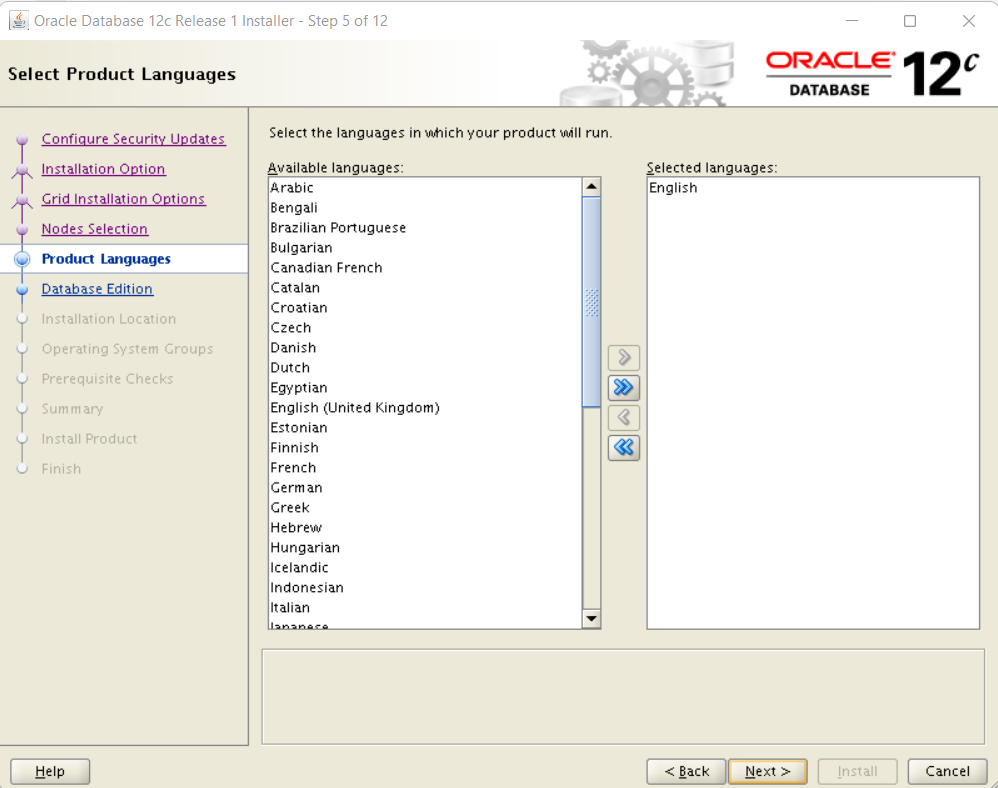

./runInstaller
Upgrade RAC database
Run the DBUA to start the database upgrade
export ORACLE_HOME=/oracle/db/12cr2
export PATH=$ORACLE_HOME/bin:$PATH
export ORACLE_SID=PROD1
invoke —---->> dbua
Check Database status and configuration :
bash-3.2$ ./srvctl status database -d PROD
Instance PROD1 is running on node racnode1
Instance PROD2 is running on node racnode2
bash-3.2$ ./srvctl config database -d PROD
Instance PROD1 is running on node racnode1
Instance PROD2 is running on node racnode2
[oracle@racnode1 bin]$ ./srvctl config database -d PROD
Database unique name: PROD
Database name: PROD
Oracle home: /oracle/db/12cr1
Oracle user: oracle
Spfile: +DATA/prod/spfileprod.ora
Password file:
Domain:
Start options: open
Stop options: immediate
Database role: PRIMARY
Management policy: AUTOMATIC
Server pools:
Disk Groups: DATA
Mount point paths:
Services:
Type: RAC
Start concurrency:
Stop concurrency:
OSDBA group: dba
OSOPER group:
Database instances: PROD1,PROD2
Configured nodes: racnode1,racnode2
Database is administrator managed
./crs_stat -t
Name Type Target State Host
------------------------------------------------------------
ora.DATA.dg ora....up.type ONLINE ONLINE racnode1
ora....ER.lsnr ora....er.type ONLINE ONLINE racnode1
ora....N1.lsnr ora....er.type ONLINE ONLINE racnode2
ora....N2.lsnr ora....er.type ONLINE ONLINE racnode1
ora....N3.lsnr ora....er.type ONLINE ONLINE racnode1
ora.MGMTLSNR ora....nr.type ONLINE ONLINE racnode1
ora.OCR.dg ora....up.type ONLINE ONLINE racnode1
ora.asm ora.asm.type ONLINE ONLINE racnode1
ora.cvu ora.cvu.type ONLINE ONLINE racnode2
ora.mgmtdb ora....db.type ONLINE ONLINE racnode1
ora....network ora....rk.type ONLINE ONLINE racnode1
ora.oc4j ora.oc4j.type ONLINE ONLINE racnode2
ora.ons ora.ons.type ONLINE ONLINE racnode1
ora.prod.db ora....se.type ONLINE ONLINE racnode1
ora....SM1.asm application ONLINE ONLINE racnode1
ora....E1.lsnr application ONLINE ONLINE racnode1
ora....de1.ons application ONLINE ONLINE racnode1
ora....de1.vip ora....t1.type ONLINE ONLINE racnode1
ora....SM2.asm application ONLINE ONLINE racnode2
ora....E2.lsnr application ONLINE ONLINE racnode2
ora....de2.ons application ONLINE ONLINE racnode2
ora....de2.vip ora....t1.type ONLINE ONLINE racnode2
ora.scan1.vip ora....ip.type ONLINE ONLINE racnode2
ora.scan2.vip ora....ip.type ONLINE ONLINE racnode1
ora.scan3.vip ora....ip.type ONLINE ONLINE racnode1
[oracle@racnode1 bin]$
