Upgrade Clusterware & Database from 12cR1 to 19c

Anup - Friday, February 24, 2023


Download Grid, DB and Latest CPU software.


19c Grid Infrastructure and Database Upgrade steps for Exadata Database Machine running on Oracle Linux (Doc ID 2542082.1)


Prerequisite:

  • 81 GB space in mount point.

  • You have downloaded and copied the Oracle Grid Infrastructure

  • You have all the disk group’s ASM COMPATIBLE set to 12 at least.

go to 19c RAC dump directory.

unzip the V982068-01 grid setup using below command

unzip V982068-01.zip -d /oracle/grid/19c

go to /oracle/grid/19c

Verify the clusterware

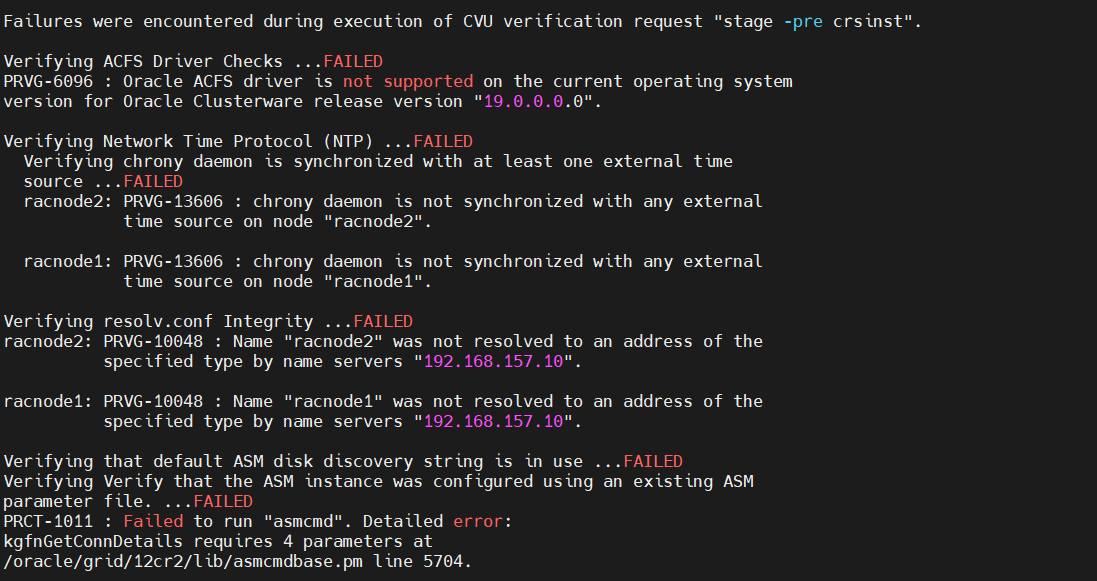

./runcluvfy.sh stage -pre crsinst -upgrade -rolling -src_crshome /oracle/grid/12cr2 -dest_crshome /oracle/grid/19c  -dest_version 19.0.0.0.0 -fixup -verbose

Issue:

Solution:

Ignore


Check GRID Infrastructure software version and Clusterware status:

cd /oracle/grid/12cr2/bin

bash-3.2$./crsctl query crs activeversion


Oracle Clusterware active version on the cluster is [12.2.0.1.0]



bash-3.2$ ./crsctl check crs

CRS-4638: Oracle High Availability Services is online

CRS-4537: Cluster Ready Services is online

CRS-4529: Cluster Synchronization Services is online

CRS-4533: Event Manager is online




bash-3.2$ ./crs_stat -t

Name           Type           Target    State     Host

------------------------------------------------------------

ora.DATA.dg    ora....up.type ONLINE    ONLINE    racnode1

ora....11.lsnr ora....er.type ONLINE    ONLINE    racnode1

ora....N1.lsnr ora....er.type ONLINE    ONLINE    racnode1

ora.asm        ora.asm.type   ONLINE    ONLINE    racnode1

ora.cvu        ora.cvu.type   ONLINE    ONLINE    racnode2

ora.gsd        ora.gsd.type   OFFLINE   OFFLINE

ora....network ora....rk.type ONLINE    ONLINE    racnode1

ora.oc4j       ora.oc4j.type  ONLINE    ONLINE    racnode2

ora.ons        ora.ons.type   ONLINE    ONLINE    racnode1

ora.prod.db    ora....se.type ONLINE    ONLINE    racnode1

ora....SM1.asm application    ONLINE    ONLINE    racnode1

ora....E1.lsnr application    ONLINE    ONLINE    racnode1

ora....E1.lsnr application    ONLINE    ONLINE    racnode1

ora....de1.gsd application    OFFLINE   OFFLINE

ora....de1.ons application    ONLINE    ONLINE    racnode1

ora....de1.vip ora....t1.type ONLINE    ONLINE    racnode1

ora....SM2.asm application    ONLINE    ONLINE    racnode2

ora....E2.lsnr application    ONLINE    ONLINE    racnode2

ora....E2.lsnr application    ONLINE    ONLINE    racnode2

ora....de2.gsd application    OFFLINE   OFFLINE

ora....de2.ons application    ONLINE    ONLINE    racnode2

ora....de2.vip ora....t1.type ONLINE    ONLINE    racnode2

ora....ry.acfs ora....fs.type ONLINE    ONLINE    racnode1

ora.scan1.vip  ora....ip.type ONLINE    ONLINE    racnode1



Check Database status and configuration:

bash-3.2$ ./srvctl status database -d PROD

Instance PROD1 is running on node racnode1

Instance PROD2 is running on node racnode2


bash-3.2$ ./srvctl config database -d PROD

Database unique name: PROD

Database name:

Oracle home: /oracle/db/11.2.4

Oracle user: oracle

Spfile: +DATA/prod/spfileprod.ora

Domain:

Start options: open

Stop options: immediate

Database role: PRIMARY

Management policy: AUTOMATIC

Server pools: PROD

Database instances: PROD1,PROD2

Disk Groups: DATA

Mount point paths:

Services:

Type: RAC

Database is administrator managed

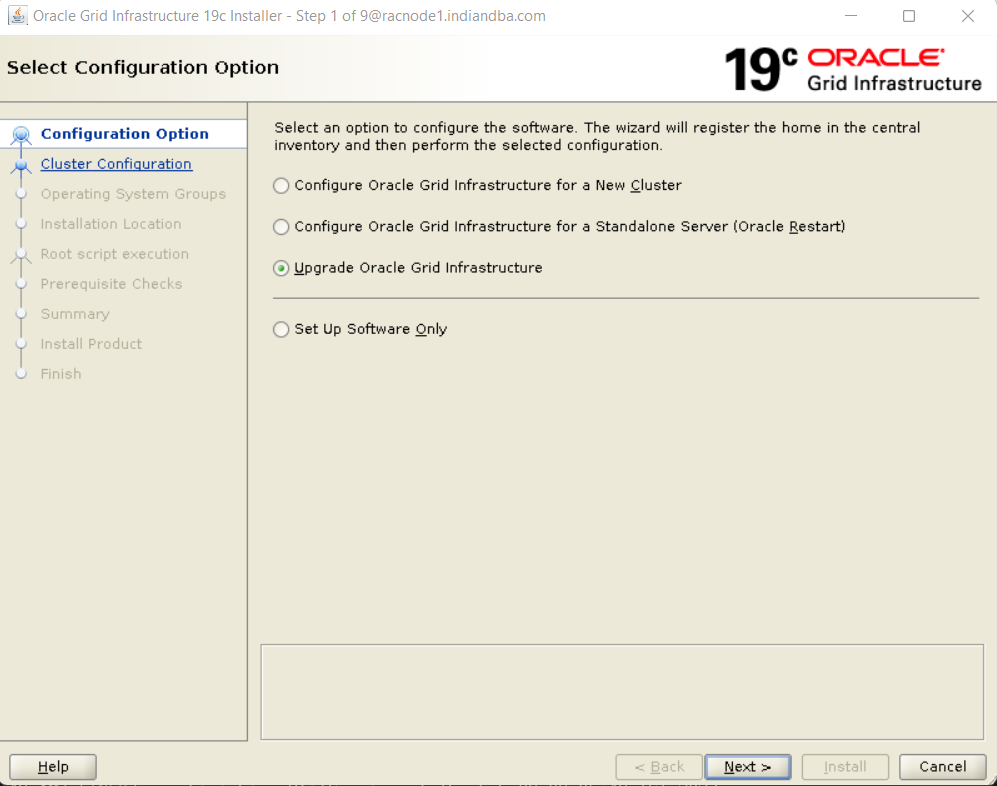

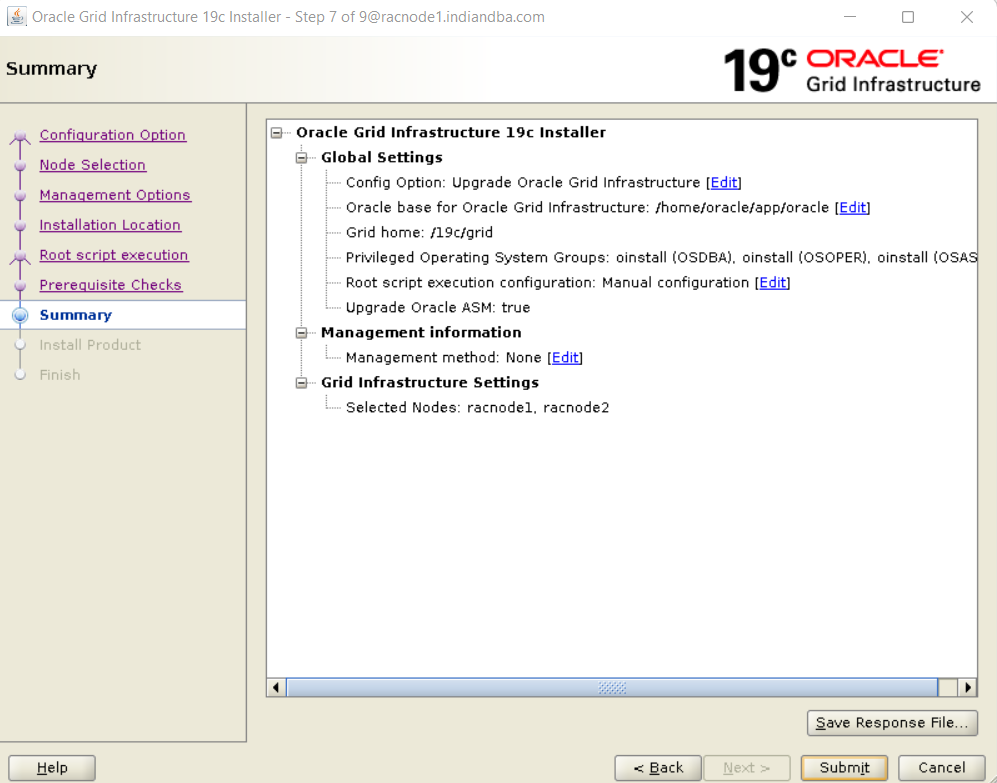

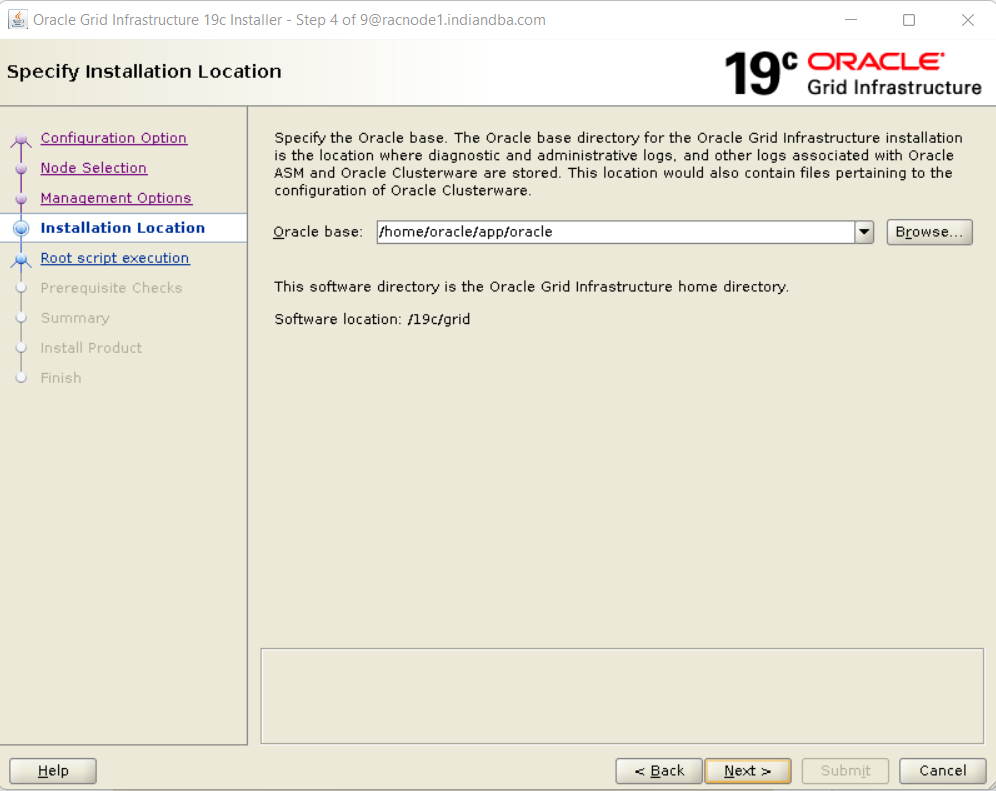

Upgrade 12cR2 by executing runInstaller:


Update OPatch to latest version

Make mount point size  85 GB

Download and unzip latest PSU Patch 34416665: GI RELEASE UPDATE 19.17.0.0.0


go to /oracle/grid/19c


To apply only Release Updates:


./gridSetup.sh -applyPSU <PSU_PATC_LOCATION>


Example:

./gridSetup.sh -applyPSU /home/oracle/34416665



Log Location : /oracle/grid/19c/cfgtoollogs/opatch








Issue:


PRCT-1011 : Failed to run "asmcmd". Detailed error: kgfnGetConnDetails requires 4 parameters at


Solution:


1.Check 'asmcmd' login on both node


export ORACLE_HOME=/oracle/grid/12cr2

export PATH=$ORACLE_HOME/bin:$PATH

export ORACLE_SID=+ASM2


asmcmd

kgfnGetConnDetails requires 4 parameters at /oracle/grid/12cr2/lib/asmcmdbase.pm line 5704. —--->>> this is the error




2. Execute the following in the both node.


/usr/bin/make -f /oracle/grid/12cr2/rdbms/lib/ins_rdbms.mk client_sharedlib libasmclntsh12.ohso libasmperl12.ohso ORACLE_HOME=/oracle/grid/12cr2


3.  Executed again "root.sh" on both node


/oracle/grid/12cr2/root.sh


4. Check 'asmcmd' login on both node


export ORACLE_HOME=/oracle/grid/12cr2

export PATH=$ORACLE_HOME/bin:$PATH

export ORACLE_SID=+ASM2


asmcmd

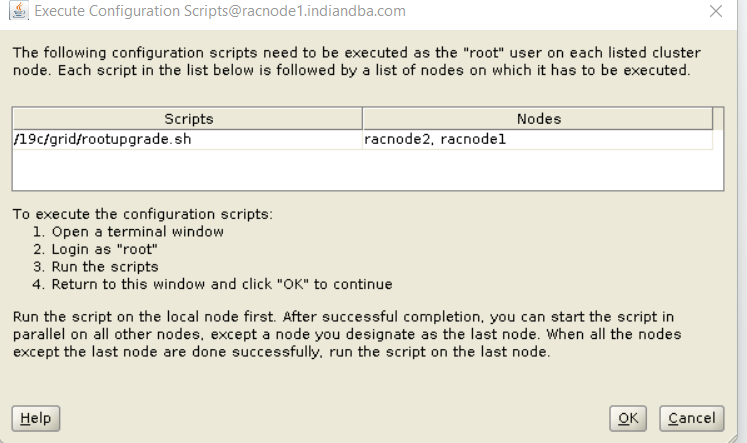

  • When prompted, run the rootupgrade.sh script on each node in the cluster that you want to upgrade.

  • Run the script on the local node first.

  • The script shuts down the earlier release installation, replaces it with the new Oracle Clusterware release, and starts the new Oracle Clusterware installation.

After running rootupgrade.sh script,Click the OK button.

Issue:


  1. rootupgrdae.sh failed

  2. validate the Log File: $GRID_HOME/cfgtoollogs/crsconfig/rootcrs_xxxx.log

fix the issue and rerun rootupgrade.sh -force


Issue:


CRS-1705: Found 0 configured voting files but 1 voting files are required, terminating to ensure data integrity; details at (:CSSNM00065:) in /home/oracle/app/oracle/diag/crs/racnode1/crs/trace/ocssd.trc

CRS-2883: Resource 'ora.cssd' failed during Clusterware stack start.

CRS-4406: Oracle High Availability Services synchronous start failed.

CRS-41053: checking Oracle Grid Infrastructure for file permission issues

CRS-4000: Command Start failed, or completed with errors.

2023/02/23 12:24:59 CLSRSC-117: (Bad argc for has:clsrsc-117)

Died at /oracle/grid/19c/crs/install/crsupgrade.pm line 1675.


Solutio:

Reboot the node1

Rerunning rootupgrade.sh after failures


./rootupgrade.sh



Check the Clusterware upgrade version:

cd /oracle/grid/19c/bin

./crsctl query crs activeversion

Oracle Clusterware active version on the cluster is [19.0.0.0.0]


./srvctl status database -d PROD

Instance PROD1 is running on node racnode1

Instance PROD2 is running on node racnode2




Validate the services after CRS upgrade:

./crsctl status resource -t

Then check the status of the clusterware globally as follows:

# crsctl check cluster -all


**************************************************************

racnode1:

CRS-4537: Cluster Ready Services is online

CRS-4529: Cluster Synchronization Services is online

CRS-4533: Event Manager is online

**************************************************************

racnode2:

CRS-4537: Cluster Ready Services is online

CRS-4529: Cluster Synchronization Services is online

CRS-4533: Event Manager is online

**************************************************************


Install RAC database from 12cR1 to 12cR2


Check the preupgrade status


cd /home/oracle/19c

./runcluvfy.sh stage -pre dbinst -upgrade -src_dbhome /oracle/db/11g -dest_dbhome /oracle/db/12cr1 -dest_version 12.1.0.2.0


go to the 19c database dump directory


cd /home/oracle/19c


unzip V982063-01-DB.zip -d /19c/db

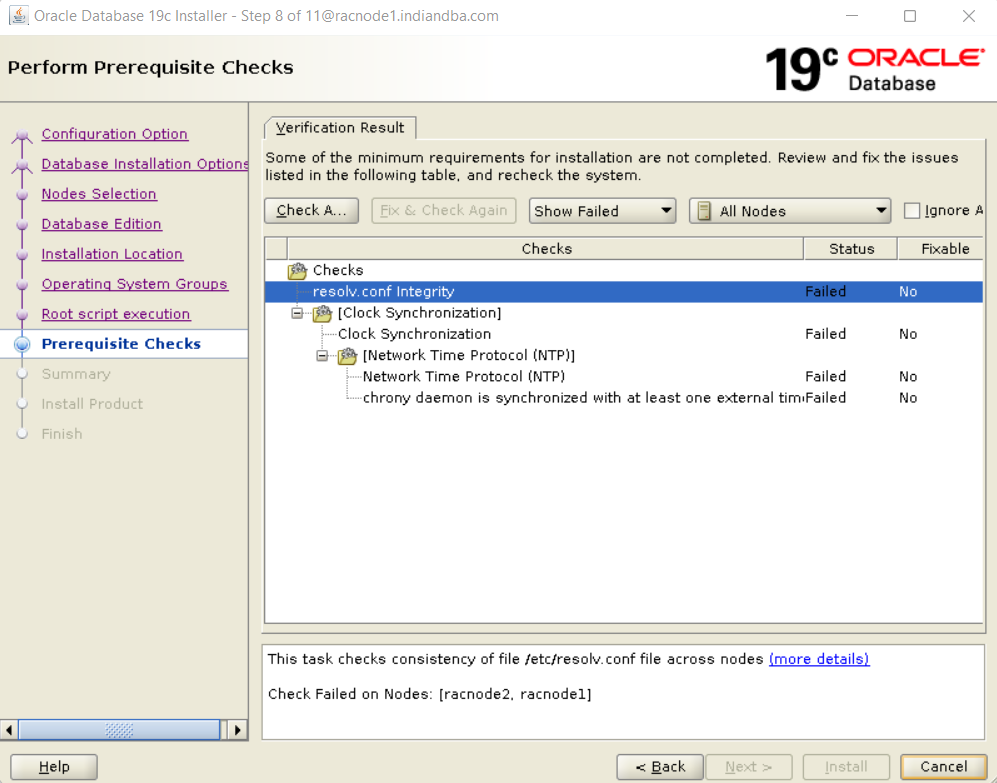

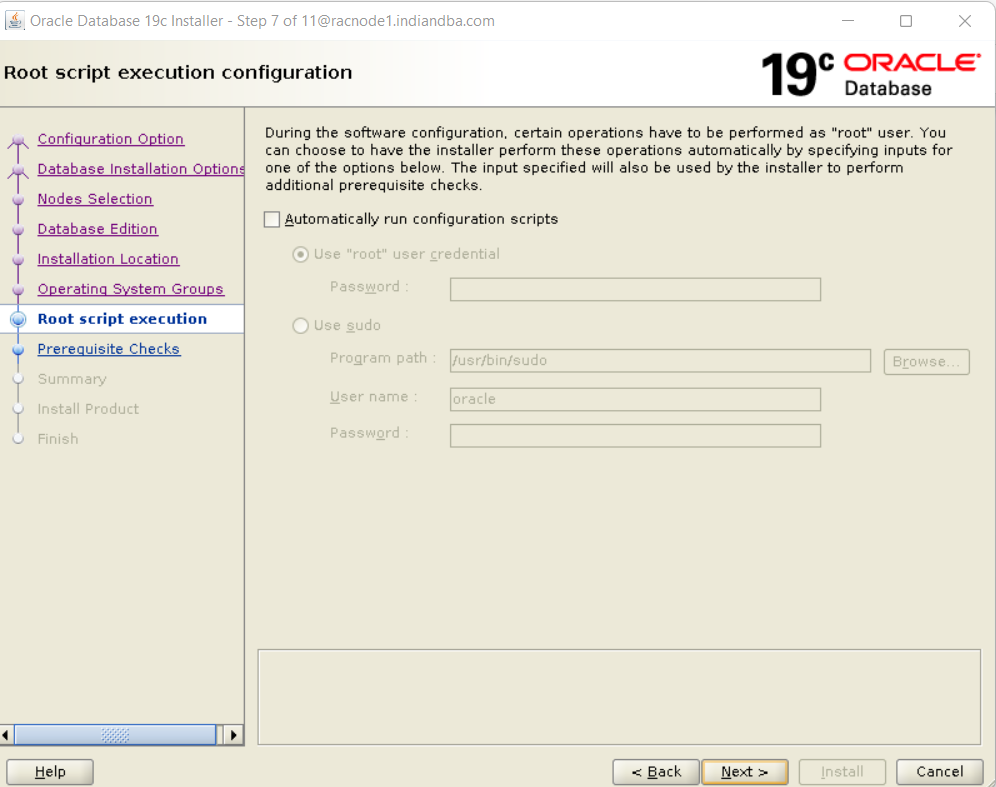

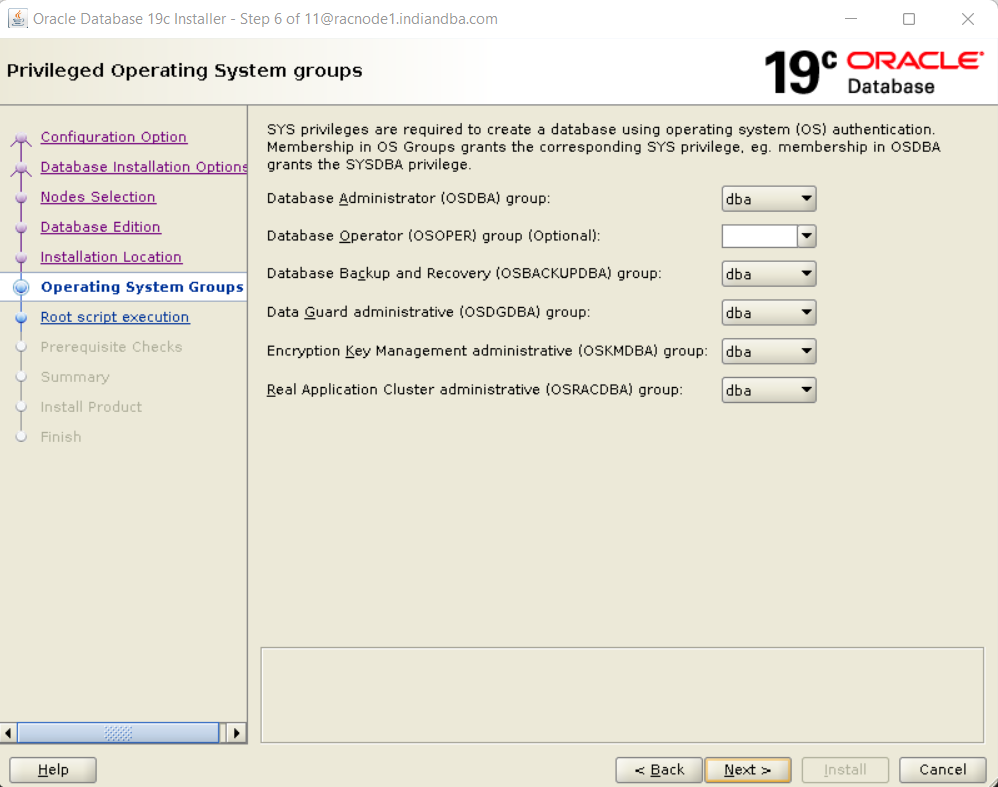

./runInstaller




































Upgrade RAC database Manually

Step by Step Oracle Grid + RAC Database upgrade from 12.2.0.1 to 19c in Silent Method - Infra Xpertzz


Run preupgrade utility after setting the 12c environment variables

export ORACLE_HOME=/oracle/db/12cr2

export PATH=$ORACLE_HOME/bin:$PATH

export ORACLE_SID=PROD1



/oracle/db/19c/jdk/bin/java -jar /oracle/db/19c/rdbms/admin/preupgrade.jar TERMINAL TEXT


Run the before upgrade steps along with preupgrade_fixups.sql


Copy dbs and network files from old home to new home ( both the servers )


Make changes in the pfile with oracle 19c location from Node 1


ASMCMD> pwd

+DATA/PROD

ASMCMD> cp spfileprod.ora /home/oracle

copying +DATA/PROD/spfileprod.ora -> /home/oracle/spfileprod.ora



Also make cluster database=false in node 1 pfile from Node 1


SQL> alter system set cluster_database=False scope=spfile sid='PROD1';


System altered.



Enable RAC on new 19c home in node1

export ORACLE_HOME=/oracle/db/19c

export PATH=$ORACLE_HOME/bin:$PATH

export ORACLE_SID=PROD1

cd $ORACLE_HOME/rdbms/lib

make -f ins_rdbms.mk rac_on

make -f ins_rdbms.mk ioracle


Shutdown database from old home and remove database from OCR from old home

export ORACLE_HOME=/oracle/db/12cr2

export PATH=$ORACLE_HOME/bin:$PATH

export ORACLE_SID=PROD1



srvctl stop database -d PROD

srvctl remove database -d PROD

Remove the database infra? (y/[n]) y




Upgrade database from new home on 1st node only

export ORACLE_HOME=/oracle/db/19c

export PATH=$ORACLE_HOME/bin:$PATH


sqlplus / as sysdba

create pfile from spfile;

startup upgrade pfile=initPROD1.ora

exit;


You can run the upgrade using either of the following commands.


# Regular upgrade command.

cd $ORACLE_HOME/rdbms/admin

$ORACLE_HOME/perl/bin/perl $ORACLE_HOME/rdbms/admin/catctl.pl $ORACLE_HOME/rdbms/admin/catupgrd.sql


# Shorthand command.

$ORACLE_HOME/bin/dbupgrade

[oracle@jack bin]$ ./dbupgrade


Update timezone , gather stats and run post script that will be generated by preupgrade utility tool


Update timezone


SHUTDOWN IMMEDIATE;

STARTUP UPGRADE pfile=initPROD1.ora;


SET SERVEROUTPUT ON

DECLARE

l_tz_version PLS_INTEGER;

BEGIN

SELECT DBMS_DST.get_latest_timezone_version

INTO l_tz_version

FROM dual;


DBMS_OUTPUT.put_line('l_tz_version=' || l_tz_version);

DBMS_DST.begin_upgrade(l_tz_version);

END;

/


SHUTDOWN IMMEDIATE;

STARTUP pfile=initPROD1.ora;


--> Do the Upgrade

SET SERVEROUTPUT ON

DECLARE

l_failures PLS_INTEGER;

BEGIN

DBMS_DST.upgrade_database(l_failures);

DBMS_OUTPUT.put_line('DBMS_DST.upgrade_database : l_failures=' || l_failures);

DBMS_DST.end_upgrade(l_failures);

DBMS_OUTPUT.put_line('DBMS_DST.end_upgrade : l_failures=' || l_failures);

END;

/


-- Check new settings.


SQL> SELECT * FROM v$timezone_file;


FILENAME VERSION     CON_ID

-------------------- ---------- ----------

timezlrg_32.dat     32 0



COLUMN property_name FORMAT A30

COLUMN property_value FORMAT A20


SELECT property_name, property_value

FROM   database_properties

WHERE  property_name LIKE 'DST_%'

ORDER BY property_name;


PROPERTY_NAME       PROPERTY_VALUE

------------------------------ --------------------

DST_PRIMARY_TT_VERSION       32

DST_SECONDARY_TT_VERSION       0

DST_UPGRADE_STATE       NONE



sqlplus / as sysdba

EXECUTE DBMS_STATS.GATHER_FIXED_OBJECTS_STATS;

 EXECUTE DBMS_STATS.GATHER_DICTIONARY_STATS;

exit;


# AUTOFIXUP

sqlplus / as sysdba

@12chome/cfgtoollogs/PROD/preupgrade/postupgrade_fixups.sql

exit;


Enable cluster mode to true

+DATA/PROD/spfileprod.ora

alter system set cluster_database=true  scope=spfile ;


Shutdown the database


Add database to crs from new home

srvctl add database -d PROD -o /oracle/db/19c -p '+DATA/PROD/spfileprod.ora'  -role PRIMARY

srvctl add instance -d PROD  -i PROD1 -n racnode1

srvctl add instance -d PROD-i PROD2 -n racnode2











Check Database status and configuration :

bash-3.2$ ./srvctl status database -d PROD

Instance PROD1 is running on node racnode1

Instance PROD2 is running on node racnode2


bash-3.2$ ./srvctl config database -d PROD

Instance PROD1 is running on node racnode1

Instance PROD2 is running on node racnode2

[oracle@racnode1 bin]$ ./srvctl config database -d PROD

Database unique name: PROD

Database name: PROD

Oracle home: /oracle/db/12cr1

Oracle user: oracle

Spfile: +DATA/prod/spfileprod.ora

Password file:

Domain:

Start options: open

Stop options: immediate

Database role: PRIMARY

Management policy: AUTOMATIC

Server pools:

Disk Groups: DATA

Mount point paths:

Services:

Type: RAC

Start concurrency:

Stop concurrency:

OSDBA group: dba

OSOPER group:

Database instances: PROD1,PROD2

Configured nodes: racnode1,racnode2

Database is administrator managed


./crs_stat -t

Name           Type           Target    State     Host

------------------------------------------------------------

ora.DATA.dg    ora....up.type ONLINE    ONLINE    racnode1

ora....ER.lsnr ora....er.type ONLINE    ONLINE    racnode1

ora....N1.lsnr ora....er.type ONLINE    ONLINE    racnode2

ora....N2.lsnr ora....er.type ONLINE    ONLINE    racnode1

ora....N3.lsnr ora....er.type ONLINE    ONLINE    racnode1

ora.MGMTLSNR   ora....nr.type ONLINE    ONLINE    racnode1

ora.OCR.dg     ora....up.type ONLINE    ONLINE    racnode1

ora.asm        ora.asm.type   ONLINE    ONLINE    racnode1

ora.cvu        ora.cvu.type   ONLINE    ONLINE    racnode2

ora.mgmtdb     ora....db.type ONLINE    ONLINE    racnode1

ora....network ora....rk.type ONLINE    ONLINE    racnode1

ora.oc4j       ora.oc4j.type  ONLINE    ONLINE    racnode2

ora.ons        ora.ons.type   ONLINE    ONLINE    racnode1

ora.prod.db    ora....se.type ONLINE    ONLINE    racnode1

ora....SM1.asm application    ONLINE    ONLINE    racnode1

ora....E1.lsnr application    ONLINE    ONLINE    racnode1

ora....de1.ons application    ONLINE    ONLINE    racnode1

ora....de1.vip ora....t1.type ONLINE    ONLINE    racnode1

ora....SM2.asm application    ONLINE    ONLINE    racnode2

ora....E2.lsnr application    ONLINE    ONLINE    racnode2

ora....de2.ons application    ONLINE    ONLINE    racnode2

ora....de2.vip ora....t1.type ONLINE    ONLINE    racnode2

ora.scan1.vip  ora....ip.type ONLINE    ONLINE    racnode2

ora.scan2.vip  ora....ip.type ONLINE    ONLINE    racnode1

ora.scan3.vip  ora....ip.type ONLINE    ONLINE    racnode1

[oracle@racnode1 bin]$


./crsctl stop cluster -all
Tags

You may like these posts


Post a Comment

Contact me

Get in Touch

Need to get touch with me? Please fill out the form with your enquiry.

Name
Anup Srivastav
Address
Lucknow - Utter Pradesh
Email
myindiandba@gmail.com
Message me
