Task (Install Oracle 11.2.0.4 Software/binary)

unzip Database Software

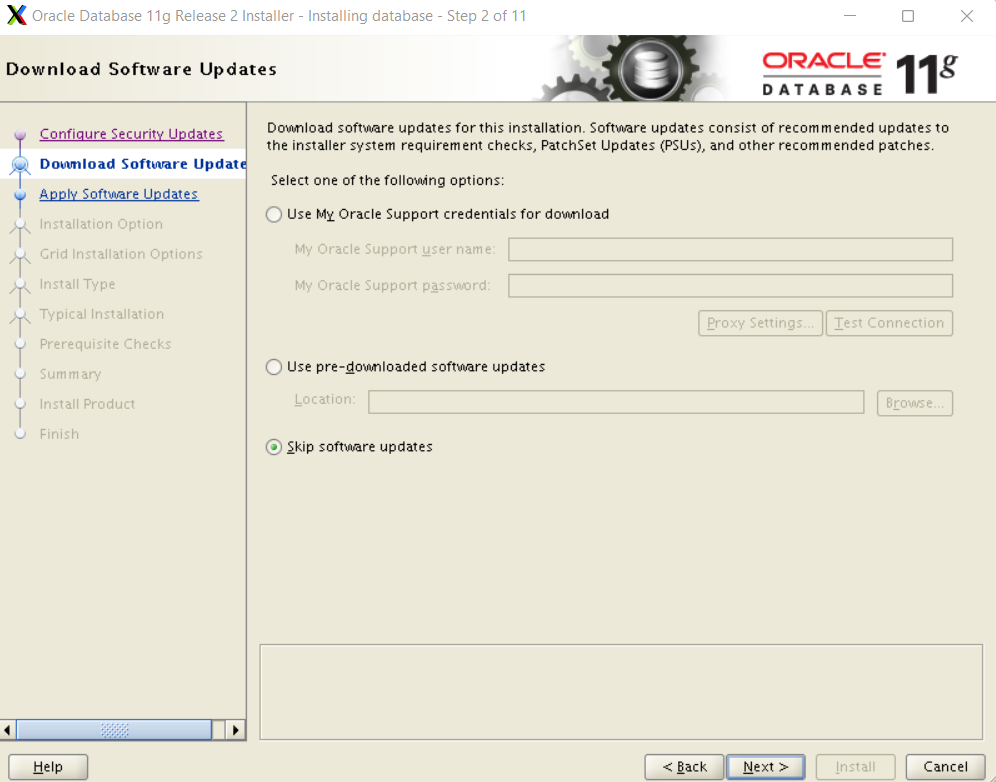

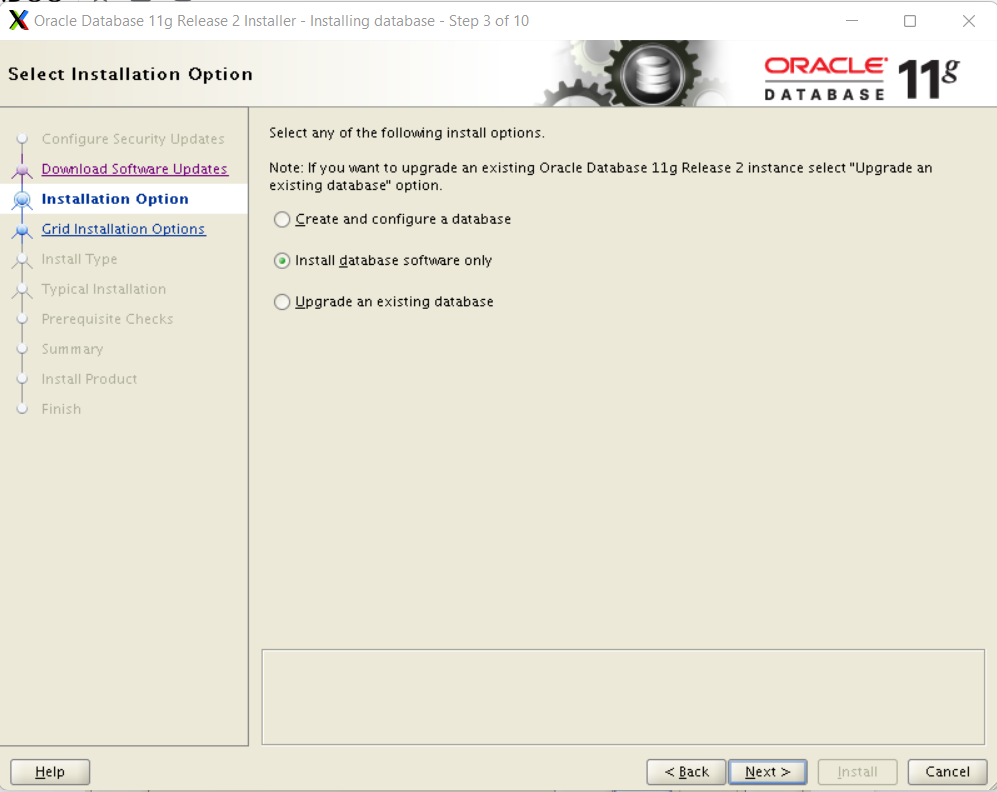

Execute runInstaller

Step 1 Log in as an ORACLE user and execute the run installer.

$./runInstaller

Error:

collect2: error: ld returned 1 exit status

INFO: make[1]: Leaving directory `/oracle/db/11g/sysman/lib'

INFO: make[1]: *** [/oracle/db/11g/sysman/lib/emdctl] Error 1

make: *** [emdctl] Error 2

INFO: End output from spawned process.

INFO: ----------------------------------

INFO: Exception thrown from action: make

Exception Name: MakefileException

Exception String: Error in invoking target 'agent nmhs' of makefile '/oracle/db/PM.log' for details.

Link error on "ins_emagent.mk".

Solution:

Edit $ORACLE_HOME/sysman/lib/ins_emagent.mk, search for the line

$(MK_EMAGENT_NMECTL)

Then replace the line with

$(MK_EMAGENT_NMECTL) -lnnz11

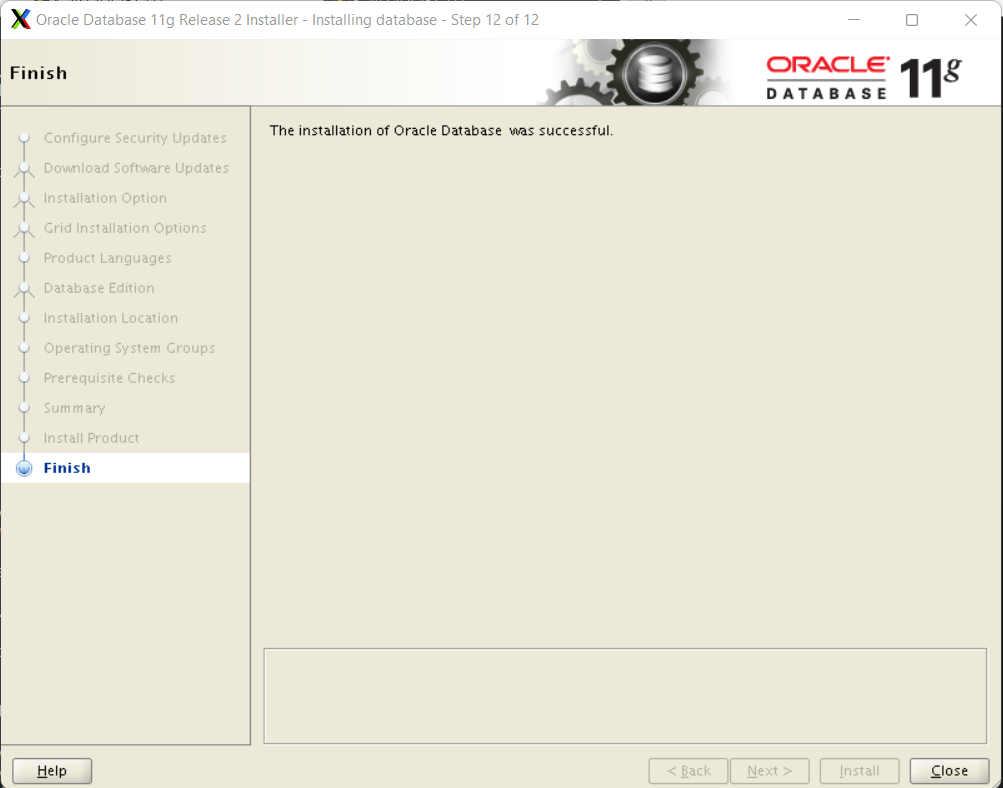

Then click “Retry” button to continue.



(Create Configure ASM DISK Groups for Storing Database Data)

By “ASMCA”

Step 1 log in as a ORACLE user , set following environment and invoke ASMCA:

$export ORACLE_HOME=<GROD_HOME>

$export PATH=$ORACLE_HOME/bin:$PATH

./asmca

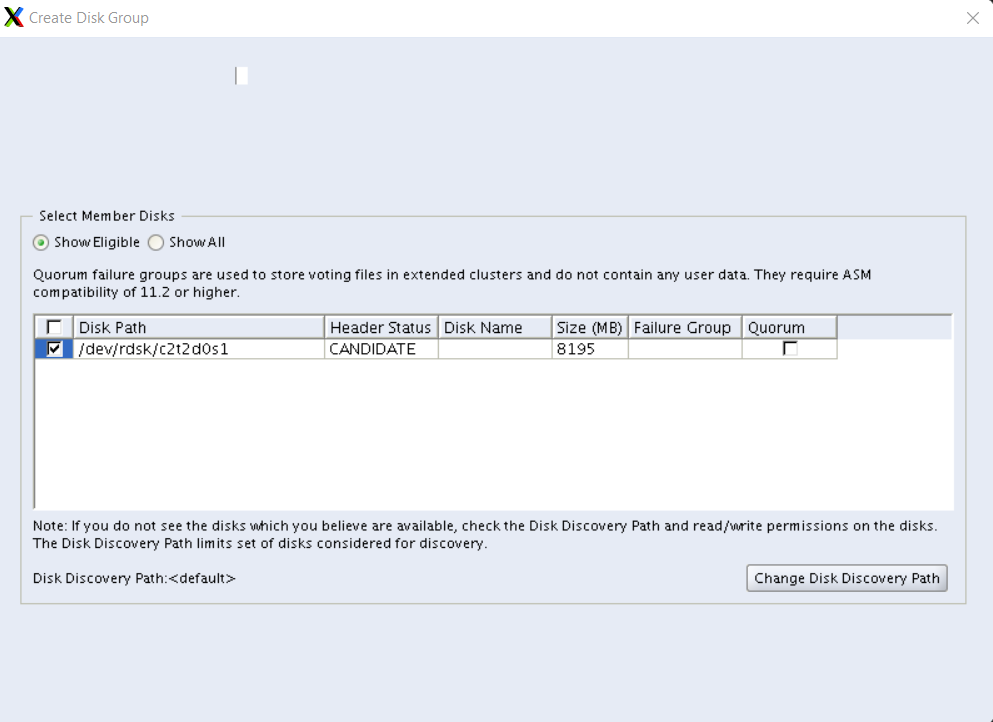

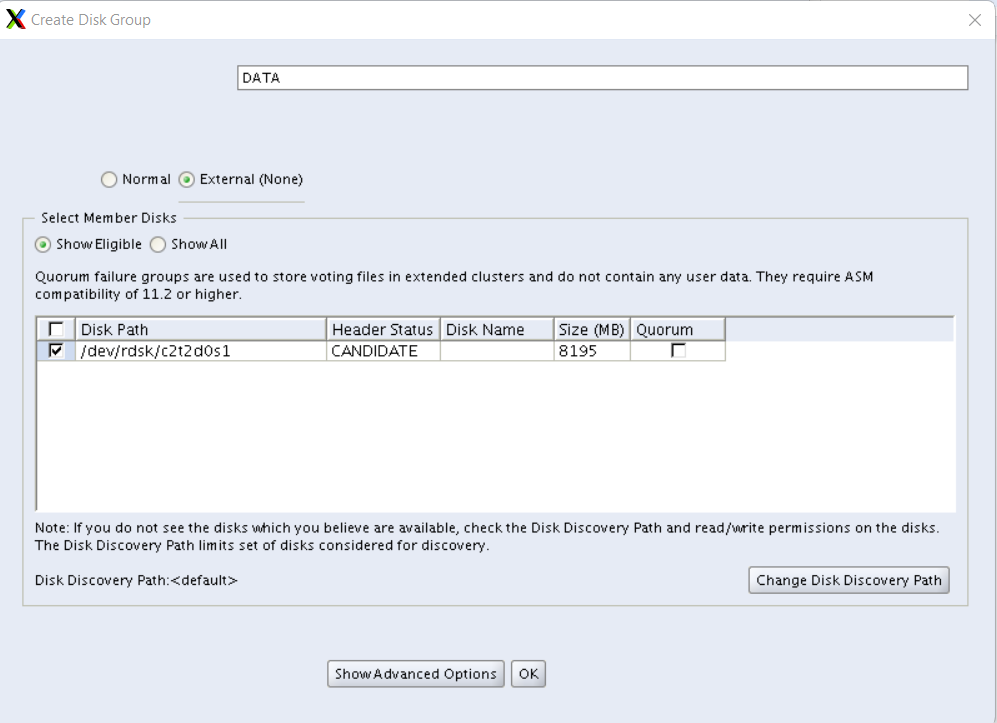

Click on Create Button

(Create Database)

We can use two methods “DBCA” or “Manual”, for creating RAC Enable Database. Here I will describe both methods. You can choose one of them.

By “DBCA”

Step 1 log in as a ORACLE user , set following environment and invoke DBCA :

$export ORACLE_HOME=<DB_HOME>

$export PATH=$ORACLE_HOME/bin:$PATH

$dbca

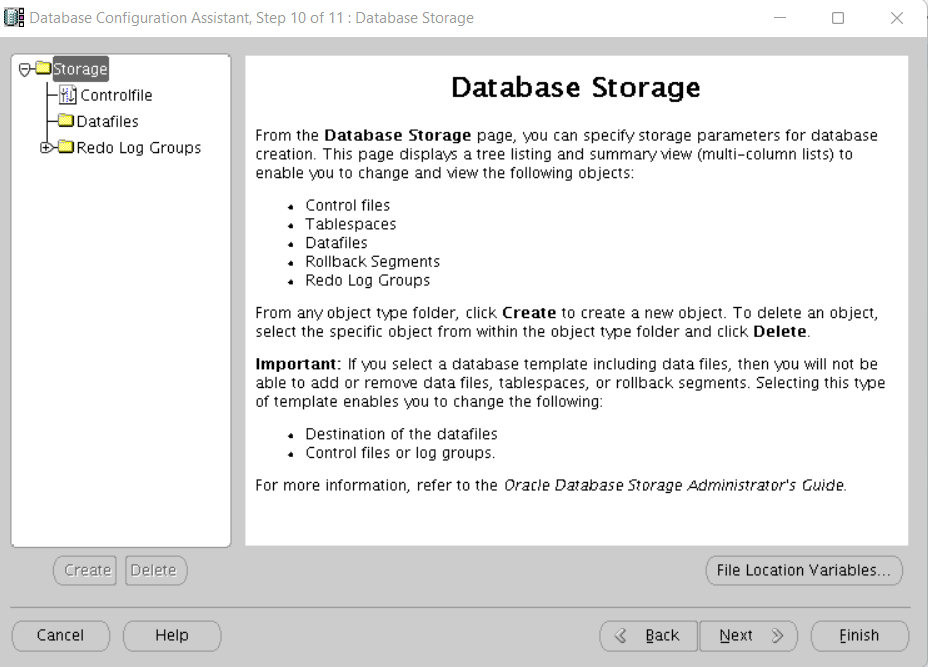

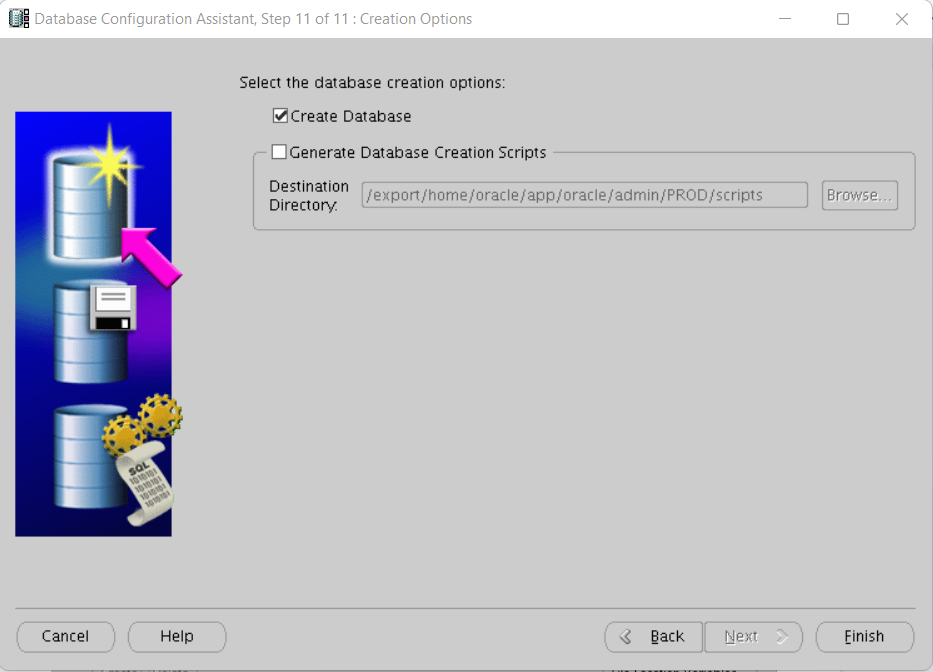

Step 2 Follow Screen Shot

After creating Database. Verify the Services.

$<CRS_HOME>/bin/crs_stat –t
